ZIM PELICAN
9960526 | 5LRW7 | ZIM by ******************** Last update: Sun Feb 16 2025

General Info

Ship Name:ZIM PELICAN
IMO Code:9960526
Call Sign:5LRW7
Line Operator:ZIM
Class Name for Sister Ships:ZZP1
Year Built:2024
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):222.33
LOA (Length Overall):238.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
40' Bays Location:-

Size Summary

ISO Bays:055
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,288

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

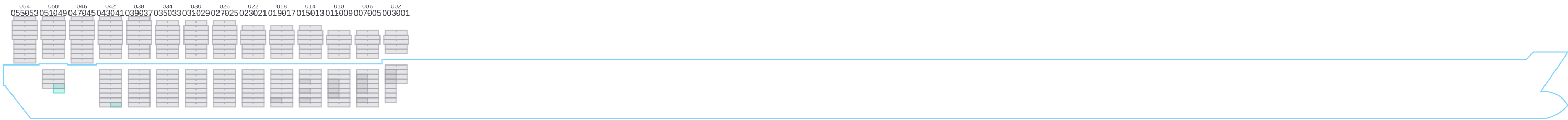

Side View

Side view of ZIM PELICAN

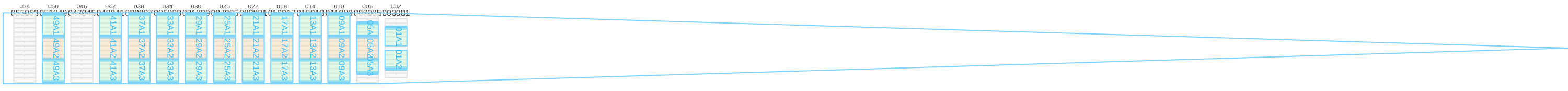

Hatch-Covers View

Deck view of ZIM PELICAN

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →
  • ✓

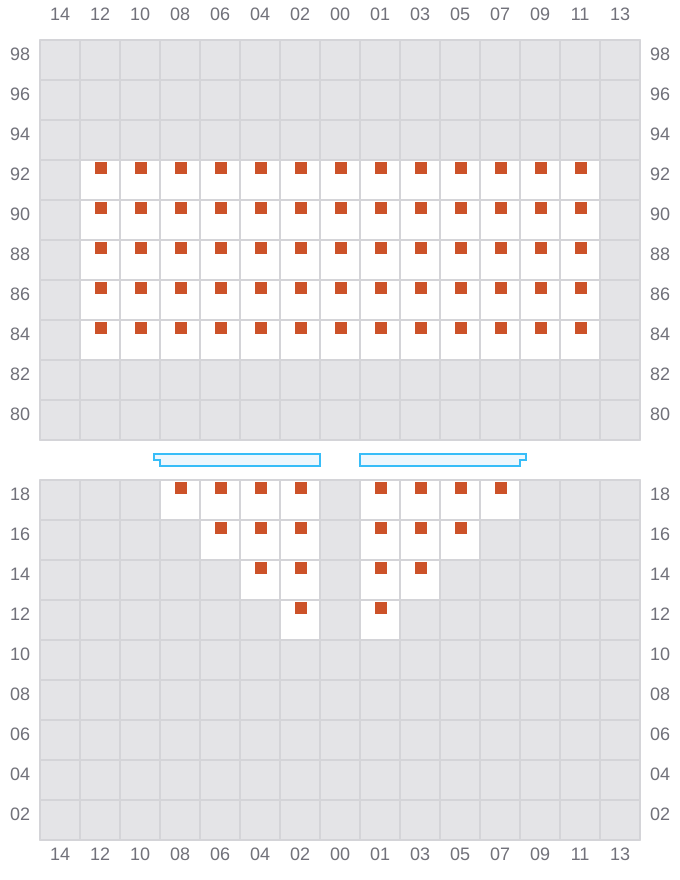

Bay 001 view and slots of ZIM PELICAN

003 (002)

  • ←
  • ✓

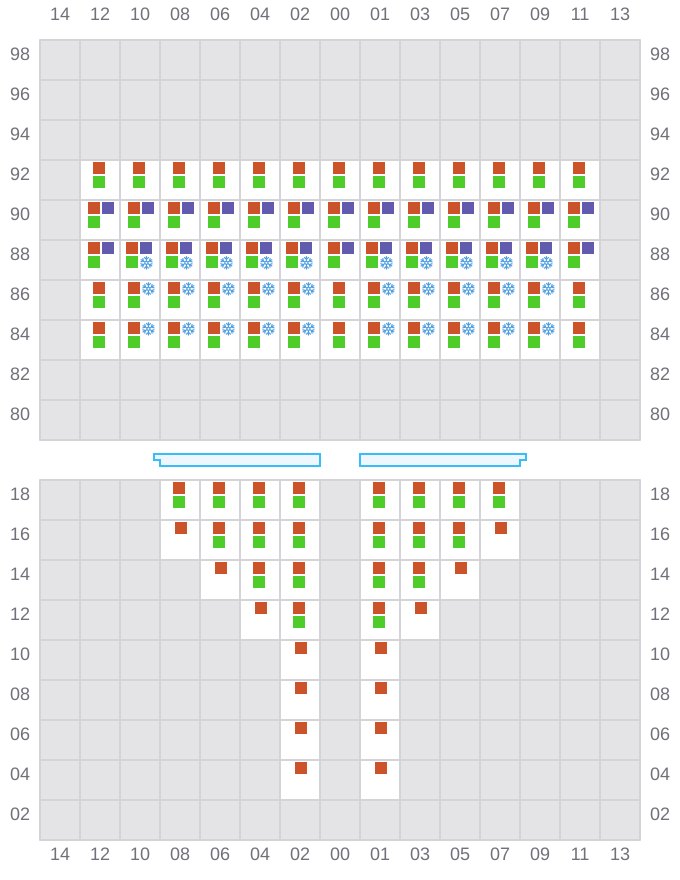

Bay 003 view and slots of ZIM PELICAN

005

  • →
  • ✓

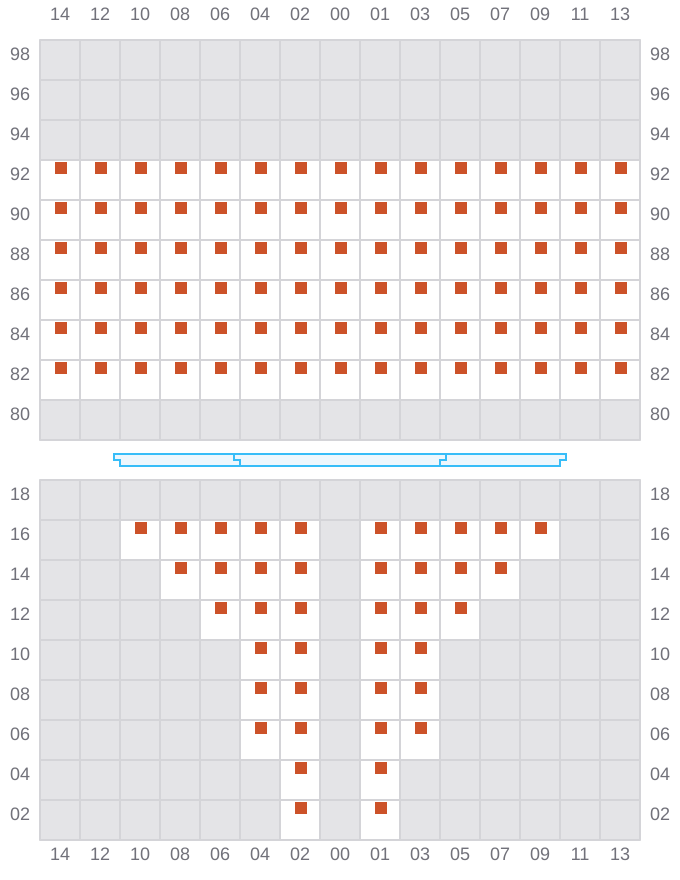

Bay 005 view and slots of ZIM PELICAN

007 (006)

  • ←
  • ✓

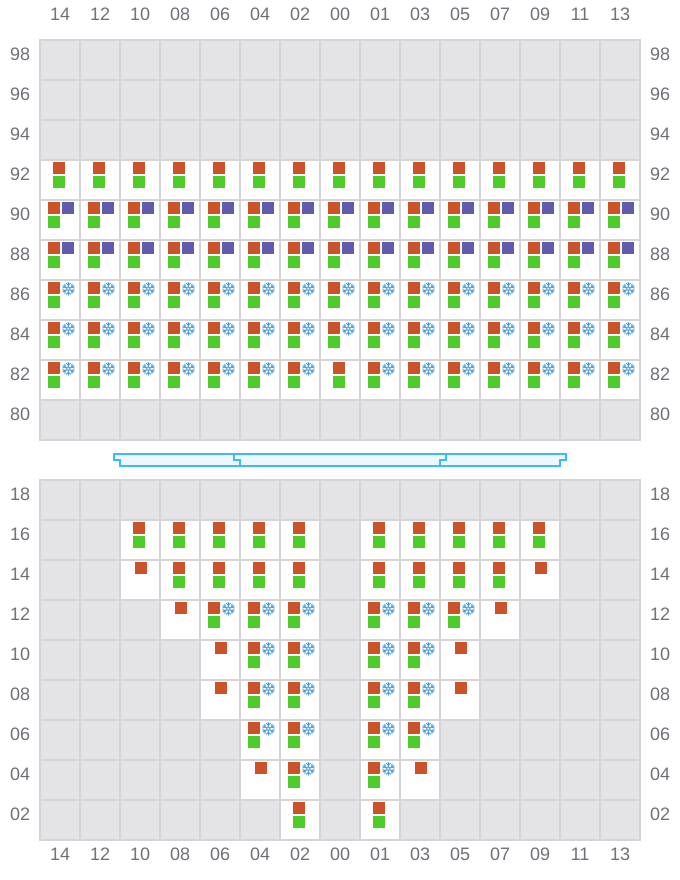

Bay 007 view and slots of ZIM PELICAN

009

  • →
  • ✓

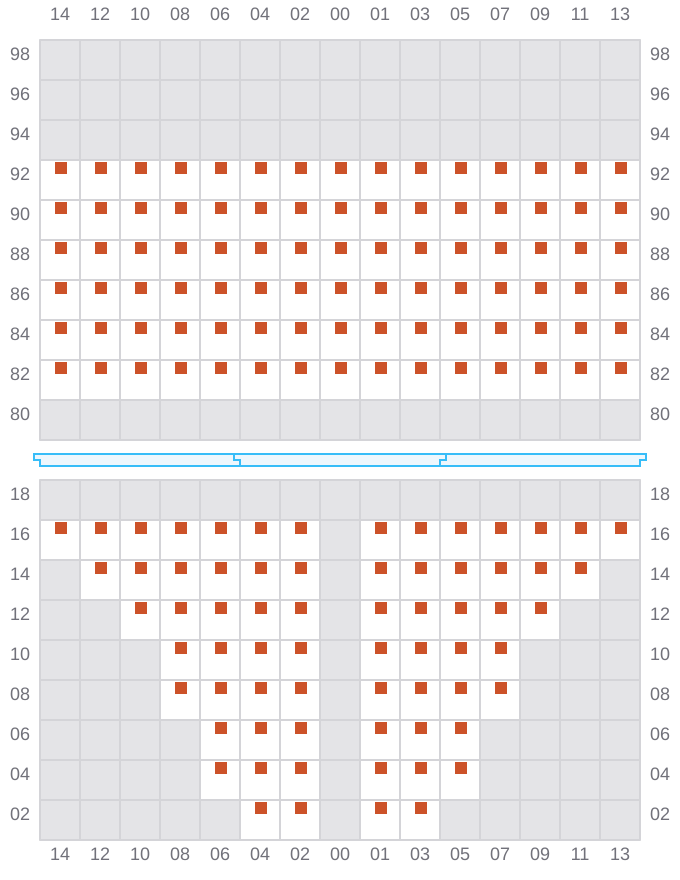

Bay 009 view and slots of ZIM PELICAN

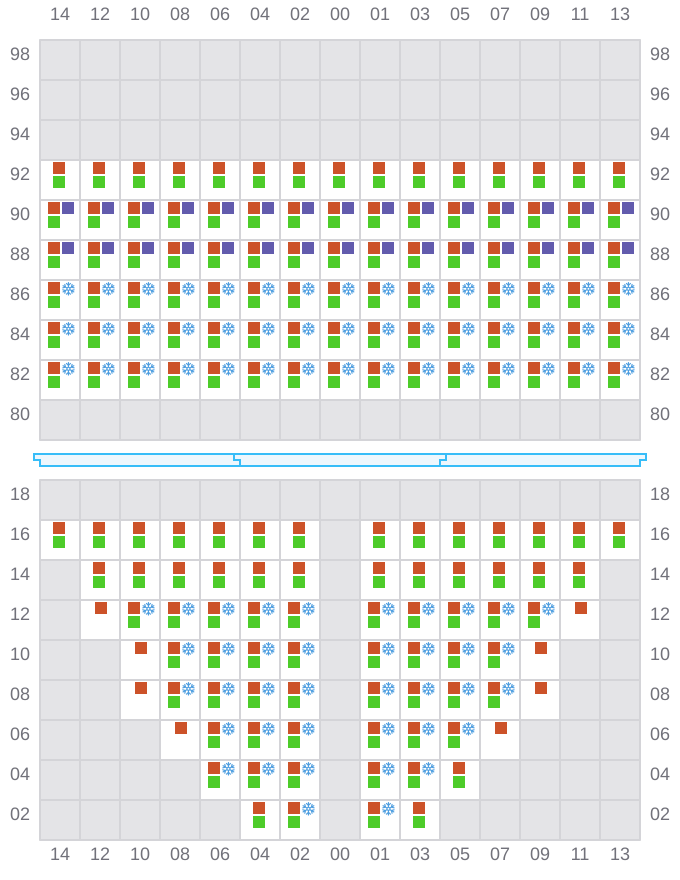

011 (010)

  • ←
  • ✓
Bay 011 view and slots of ZIM PELICAN

013

  • →
  • ✓

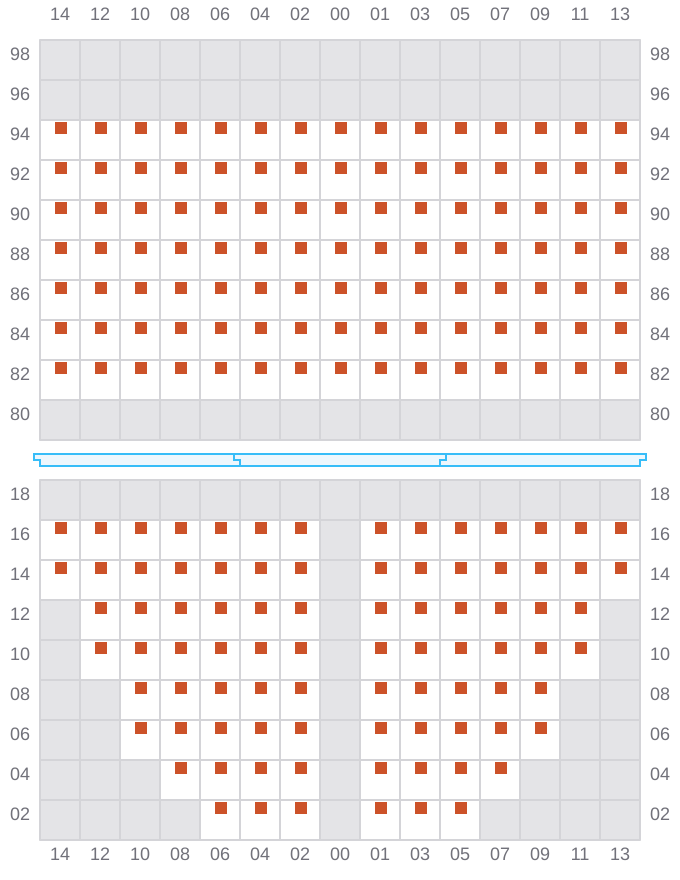

Bay 013 view and slots of ZIM PELICAN

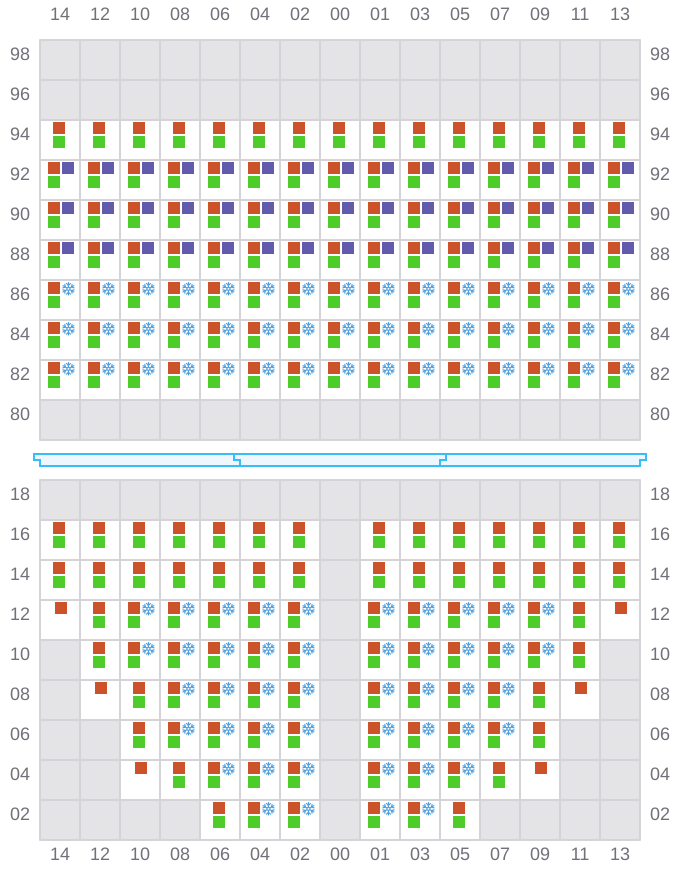

015 (014)

  • ←
  • ✓
Bay 015 view and slots of ZIM PELICAN

017

  • →
  • ✓
Bay 017 view and slots of ZIM PELICAN

019 (018)

  • ←
  • ✓

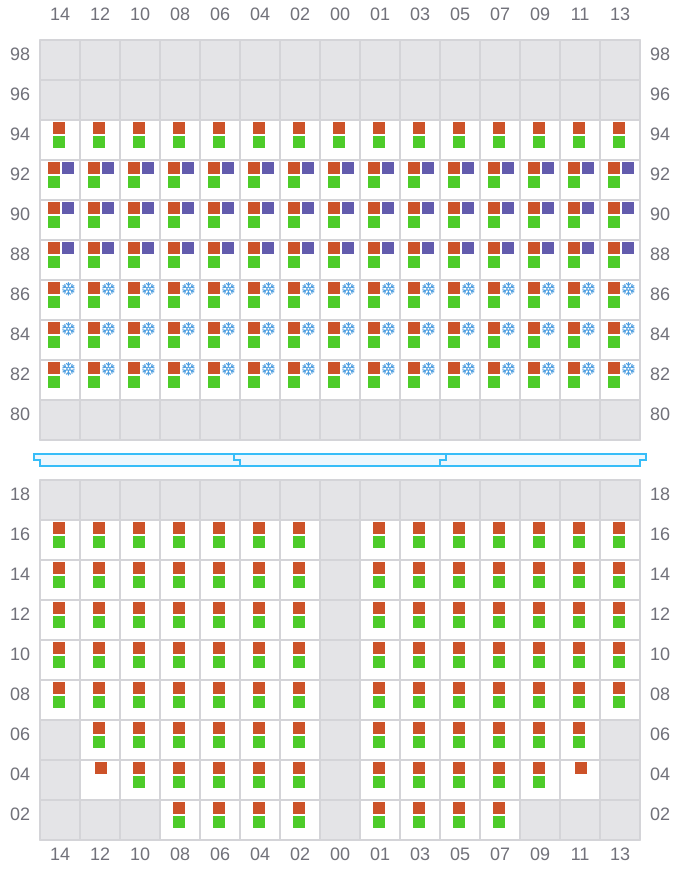

Bay 019 view and slots of ZIM PELICAN

021

  • →
  • ✓

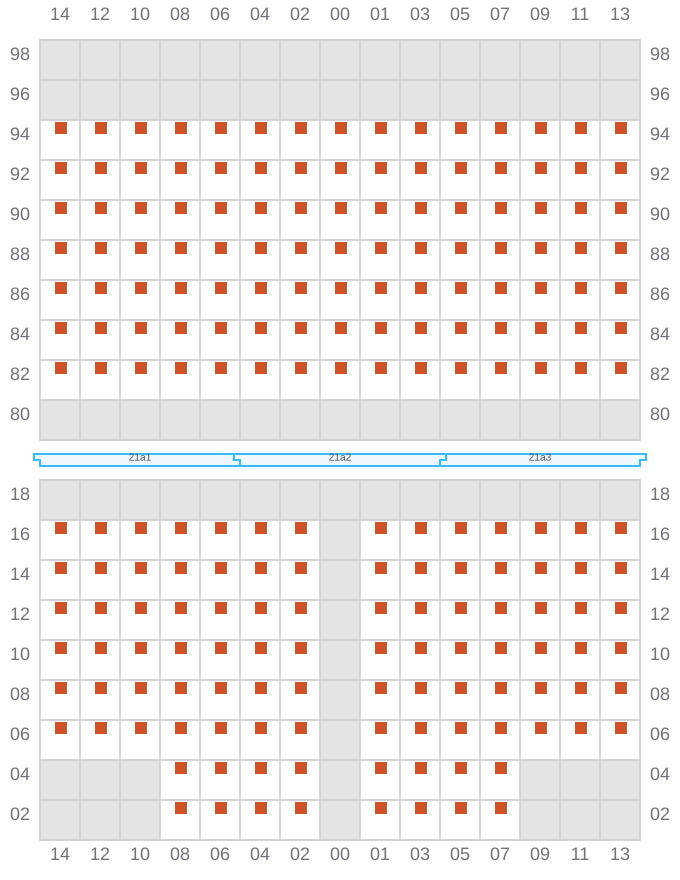

Bay 021 view and slots of ZIM PELICAN

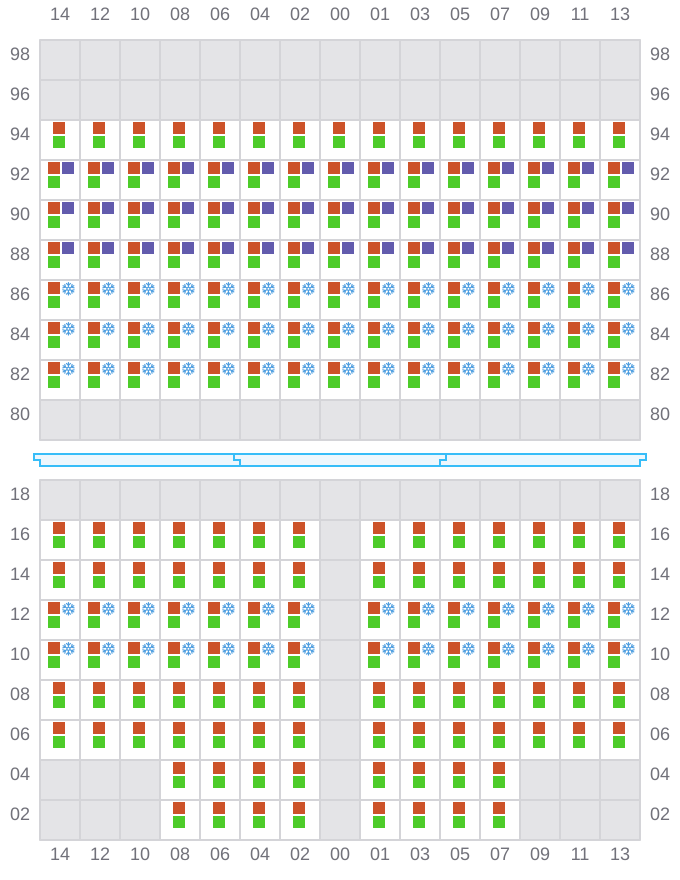

023 (022)

  • ←
  • ✓
Bay 023 view and slots of ZIM PELICAN

025

  • →
  • ✓

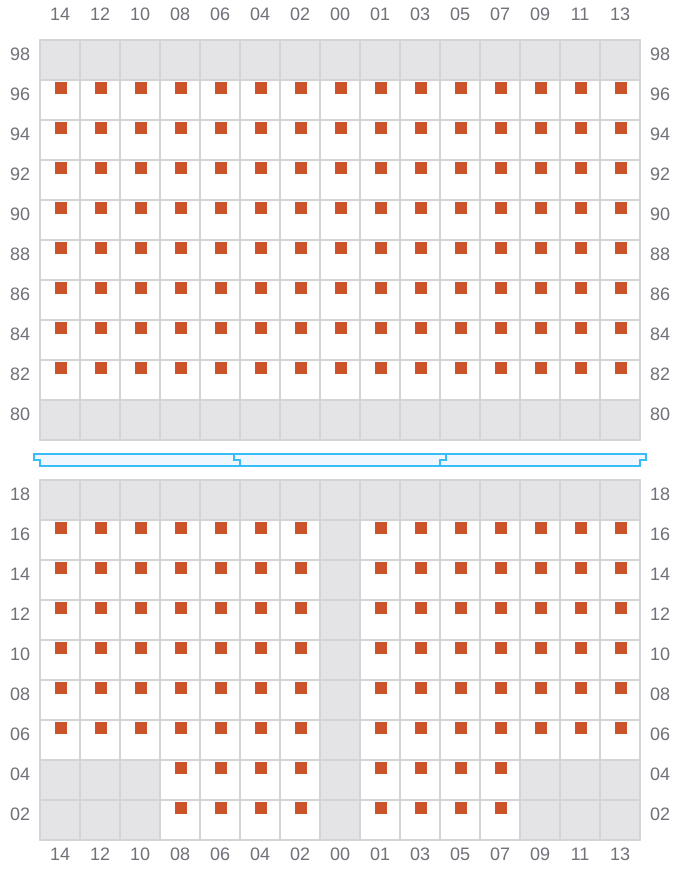

Bay 025 view and slots of ZIM PELICAN

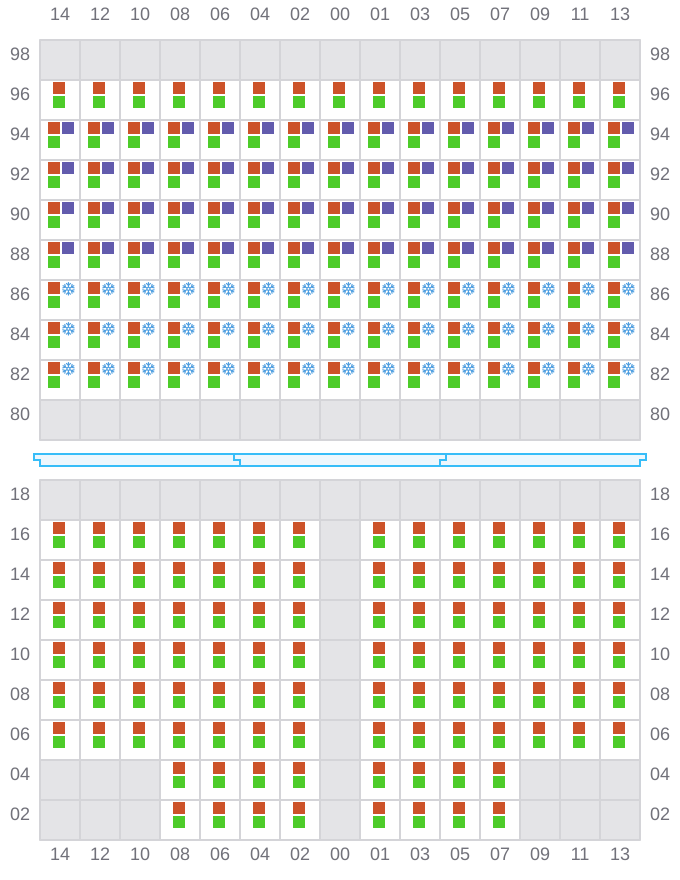

027 (026)

  • ←
  • ✓
Bay 027 view and slots of ZIM PELICAN

029

  • →
  • ✓
Bay 029 view and slots of ZIM PELICAN

031 (030)

  • ←
  • ✓

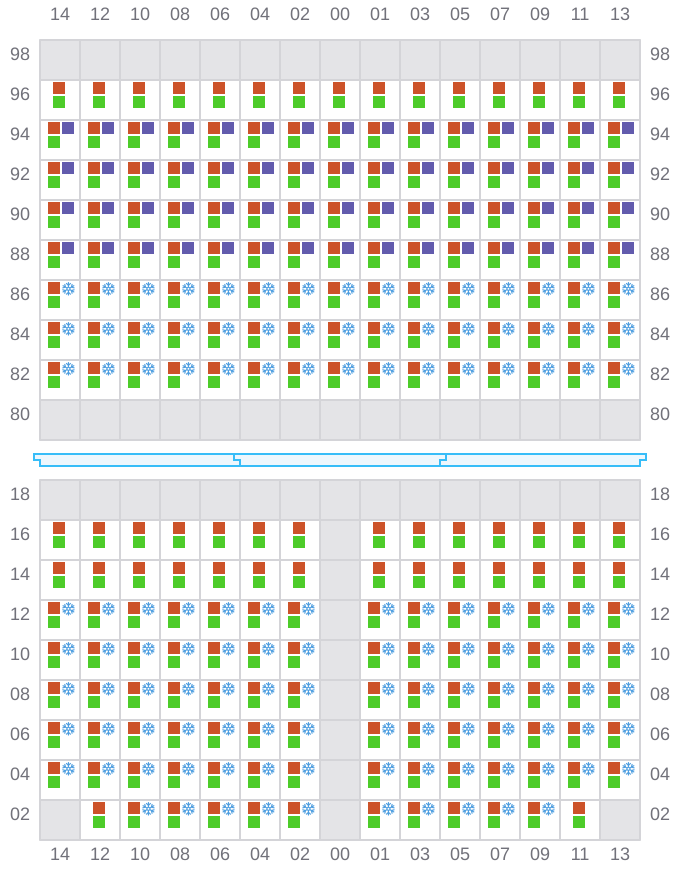

Bay 031 view and slots of ZIM PELICAN

033

  • →
  • ✓

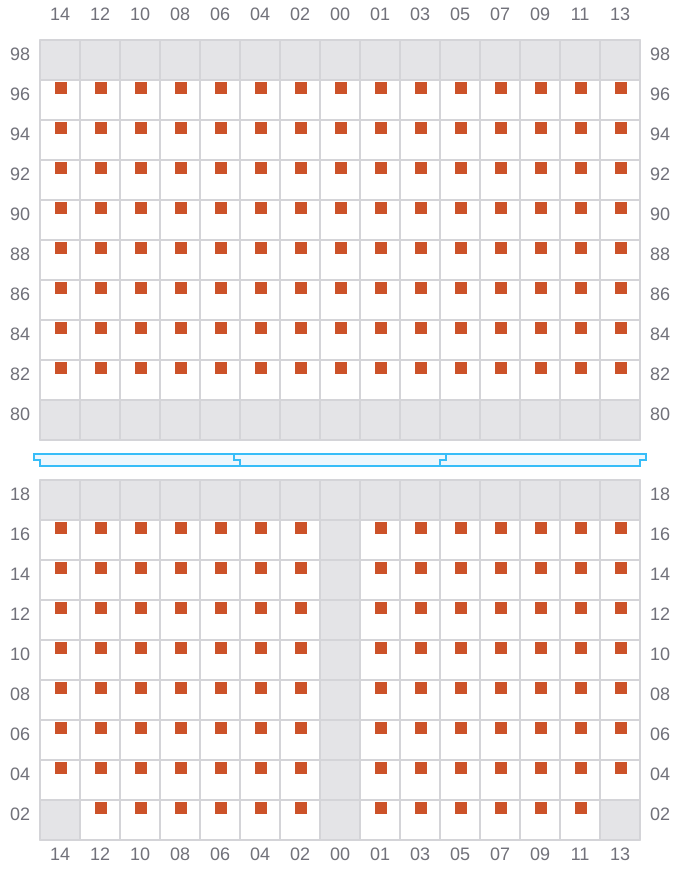

Bay 033 view and slots of ZIM PELICAN

035 (034)

  • ←
  • ✓
Bay 035 view and slots of ZIM PELICAN

037

  • →
  • ✓
Bay 037 view and slots of ZIM PELICAN

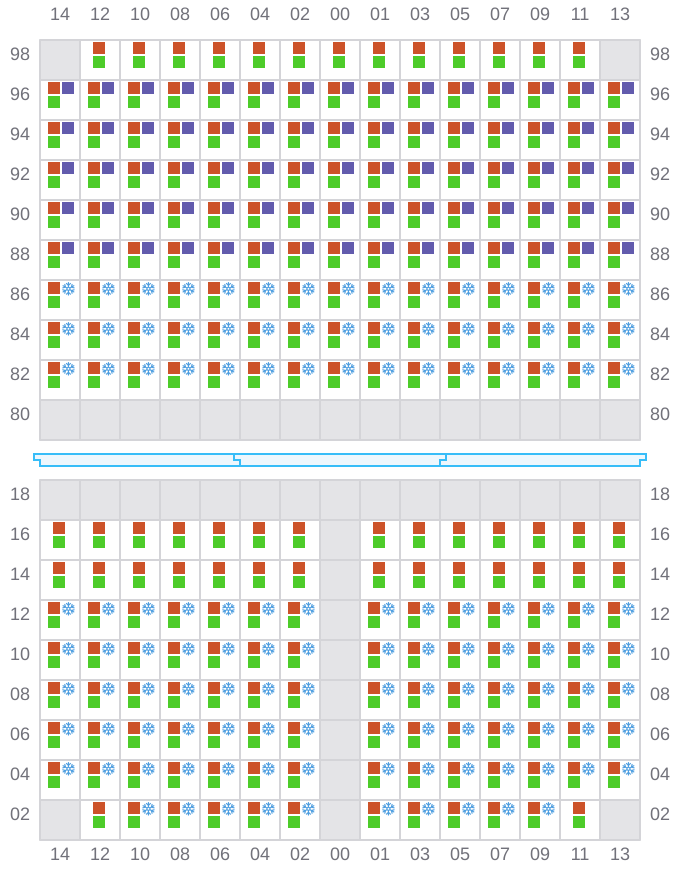

039 (038)

  • ←
  • ✓
Bay 039 view and slots of ZIM PELICAN

041

  • →
  • ✓

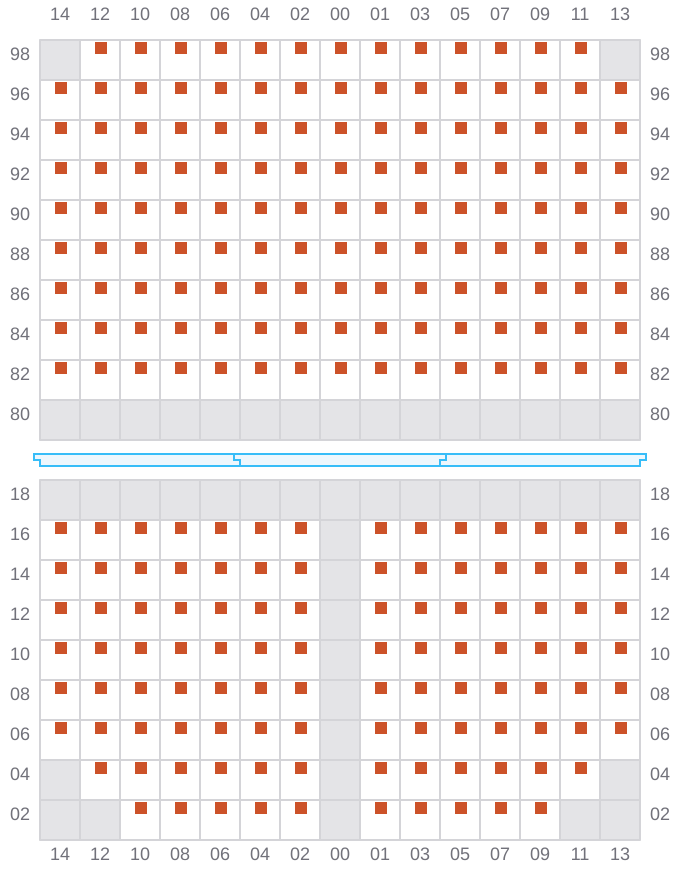

Bay 041 view and slots of ZIM PELICAN

043 (042)

  • ←
  • ✓

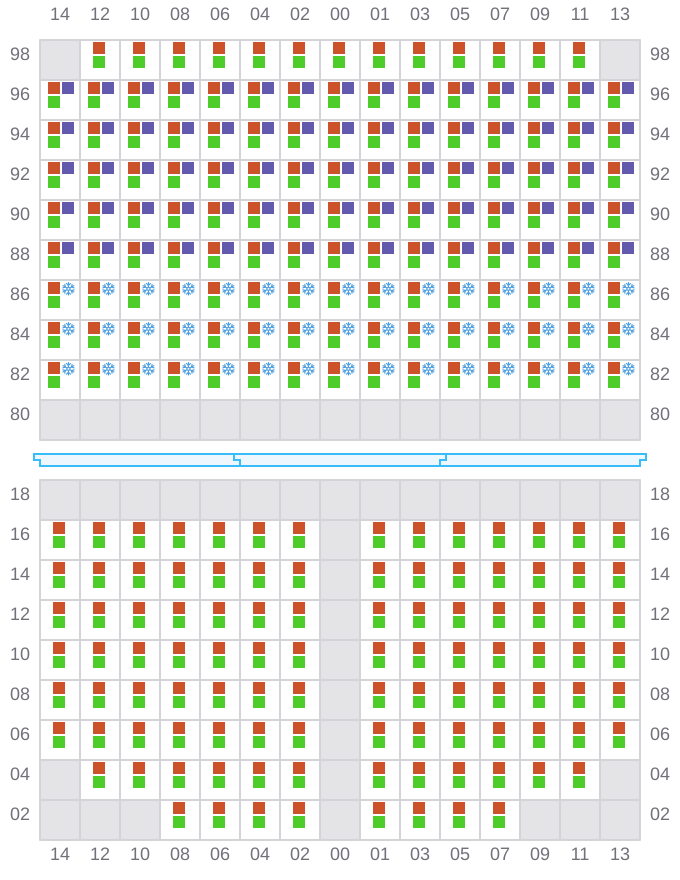

Bay 043 view and slots of ZIM PELICAN

045

  • →
  • ✓
Bay 045 view and slots of ZIM PELICAN

047 (046)

  • ←
  • ✓

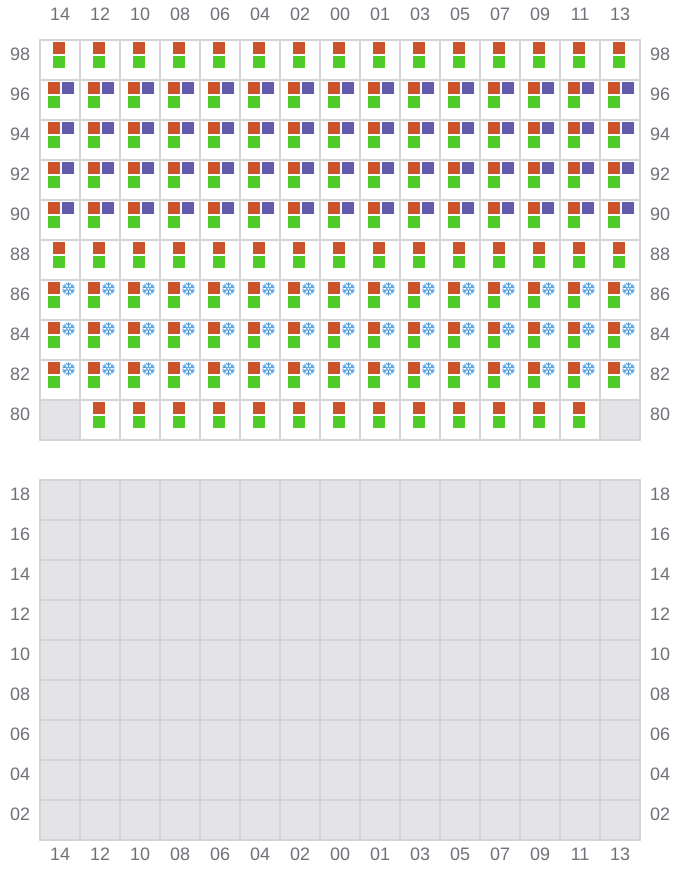

Bay 047 view and slots of ZIM PELICAN

049

  • →
  • ✓

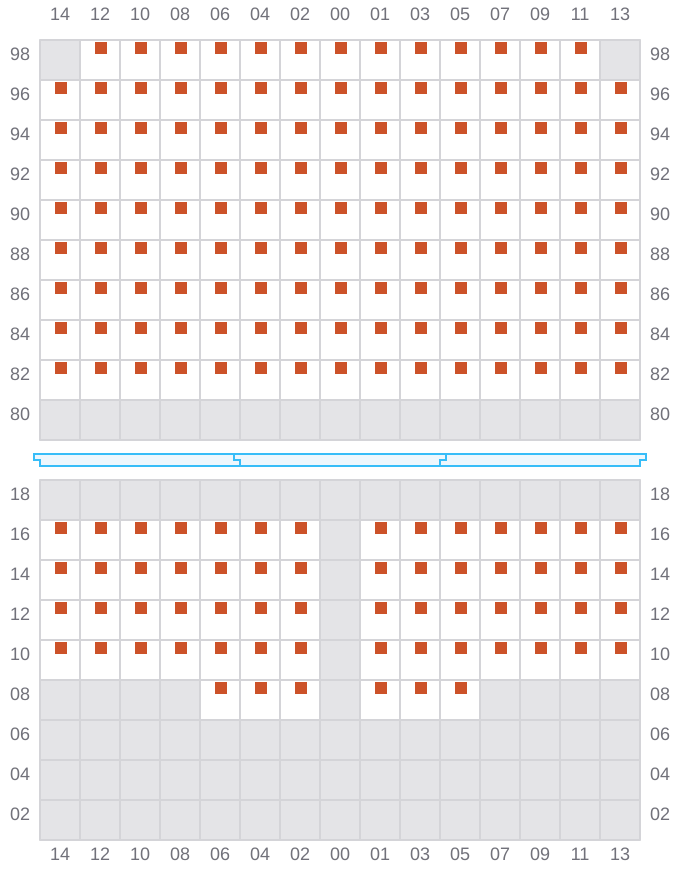

Bay 049 view and slots of ZIM PELICAN

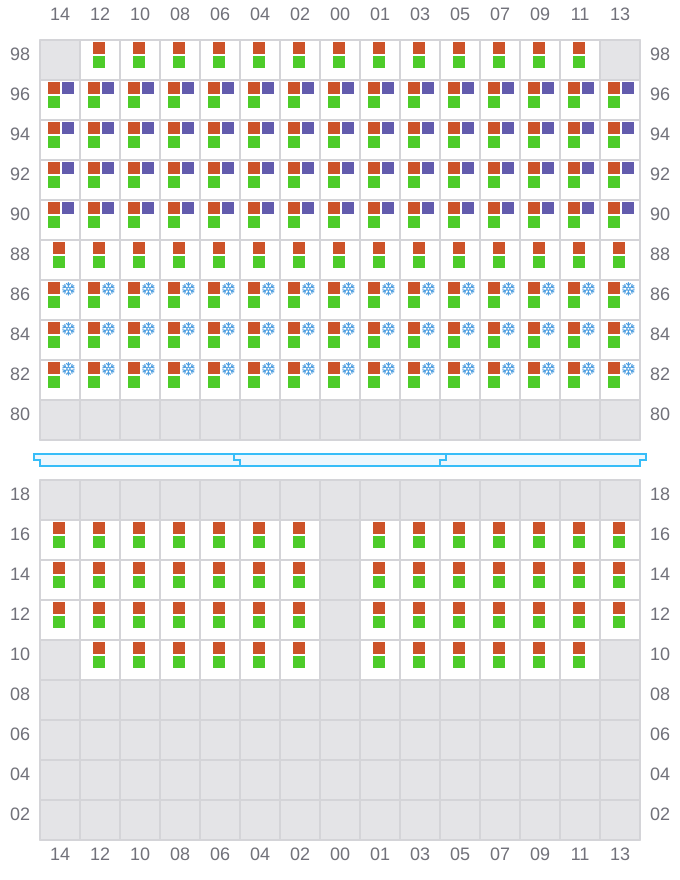

051 (050)

  • ←
  • ✓
Bay 051 view and slots of ZIM PELICAN

053

  • →
  • ✓

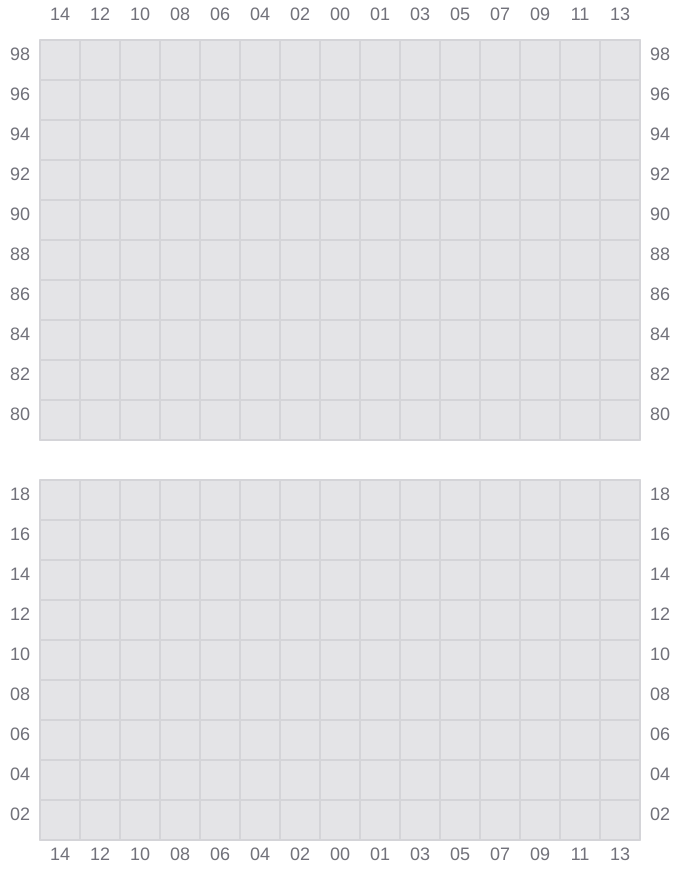

Bay 053 view and slots of ZIM PELICAN

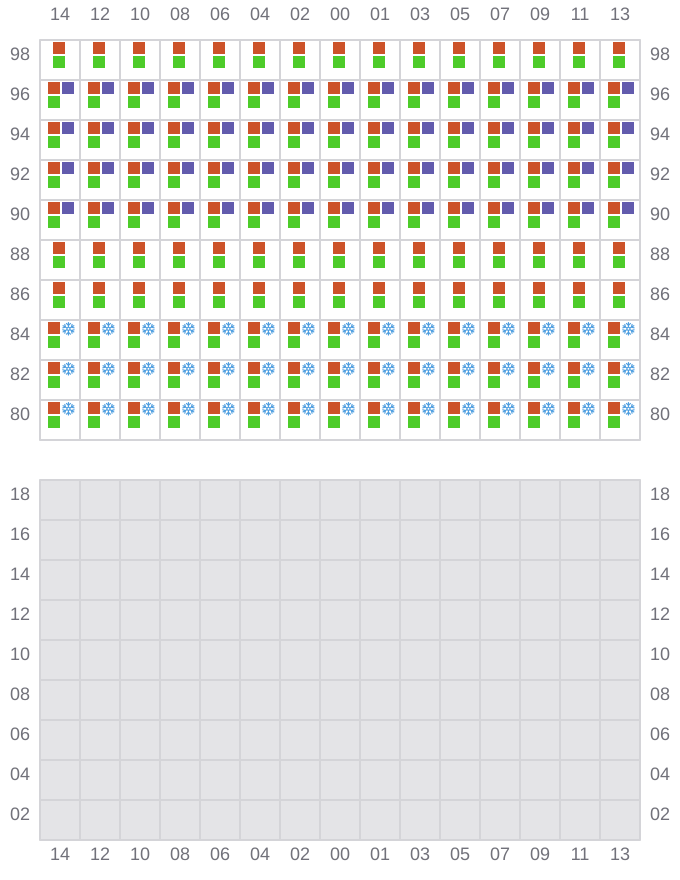

055 (054)

  • ←
  • ✓
Bay 055 view and slots of ZIM PELICAN
