ZIM VIRGINIA
9231808 | 4XFV | ZCL by ************************** Last update: Thu Jun 01 2023
General Info
Ship Name:ZIM VIRGINIA
IMO Code:9231808
Call Sign:4XFV
Line Operator:ZCL
Class Name for Sister Ships:ZVA
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,891
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

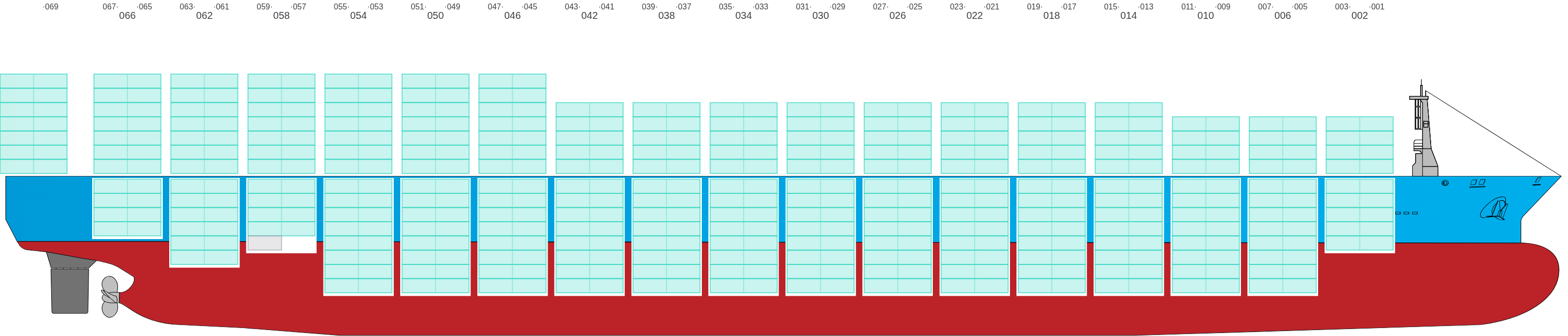

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →

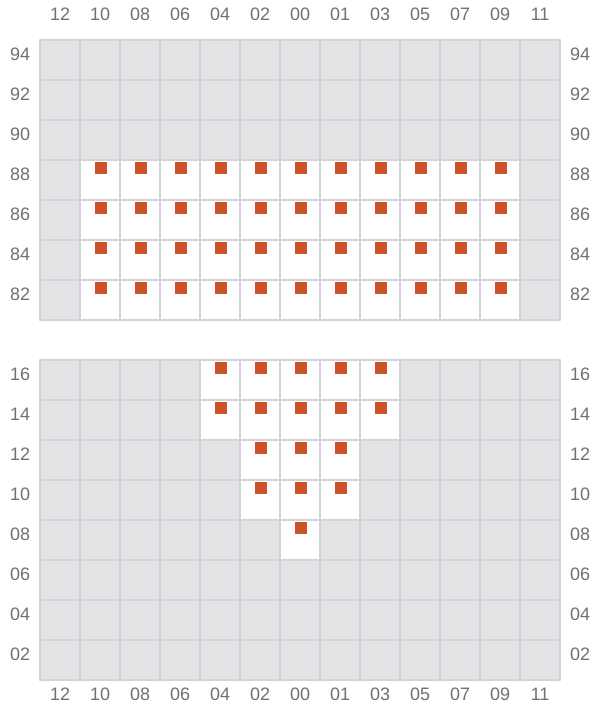

003
- ←

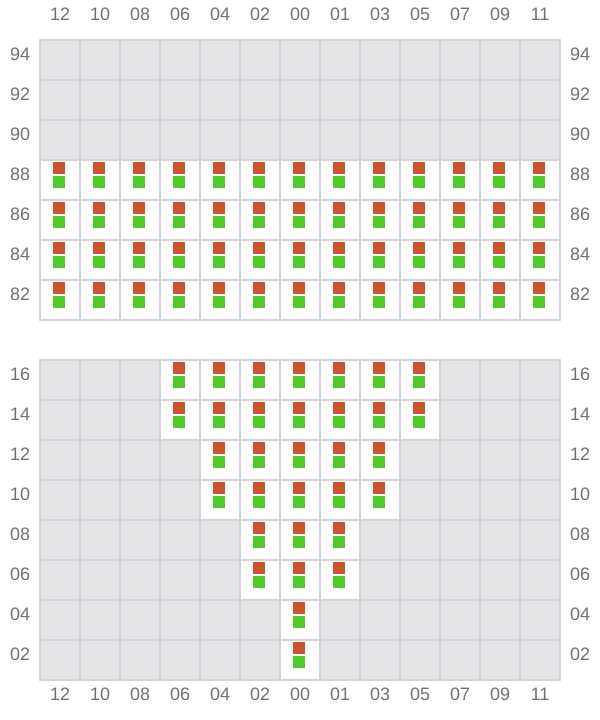

005 (006)
- →

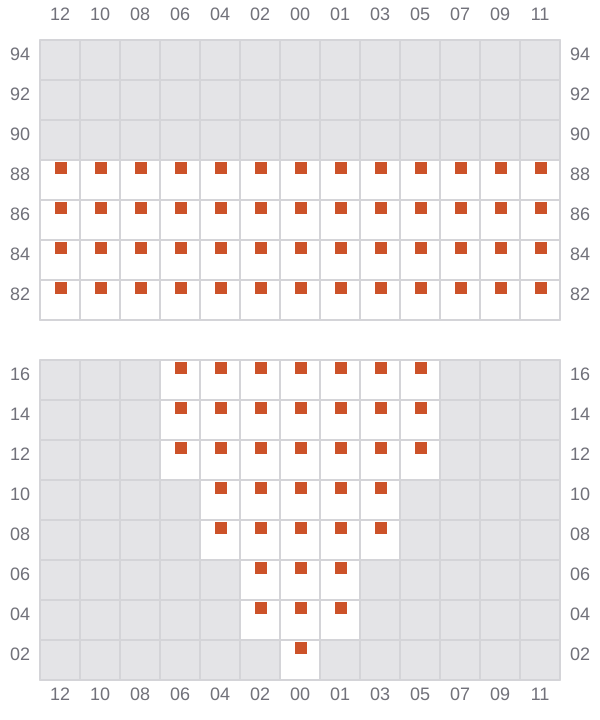

007
- ←

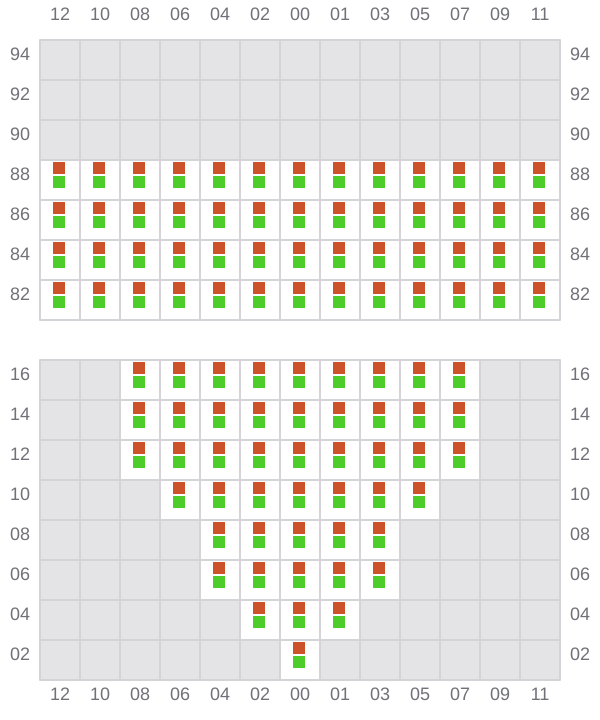

009 (010)
- →
011
- ←
013 (014)
- →
015
- ←
017 (018)
- →
019
- ←
021 (022)
- →
023
- ←
025 (026)
- →
027
- ←
029 (030)
- →
031
- ←

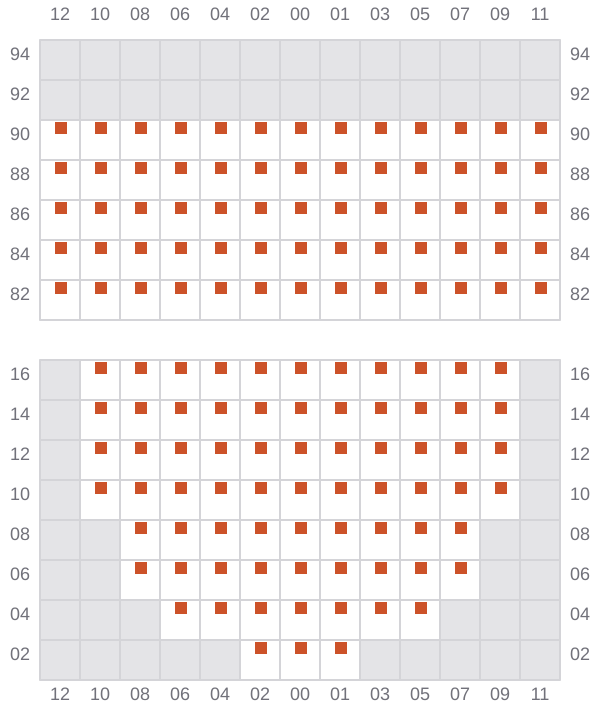

033 (034)
- →
035
- ←

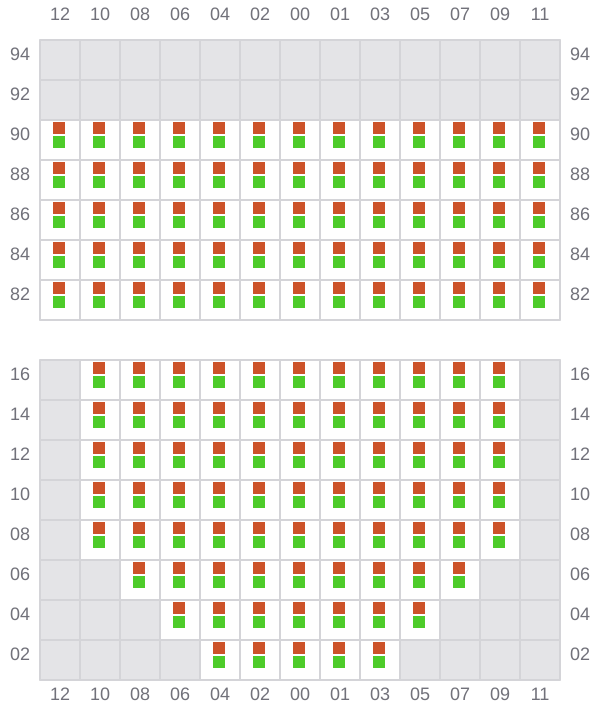

037 (038)
- →
039
- ←
041 (042)
- →
043
- ←

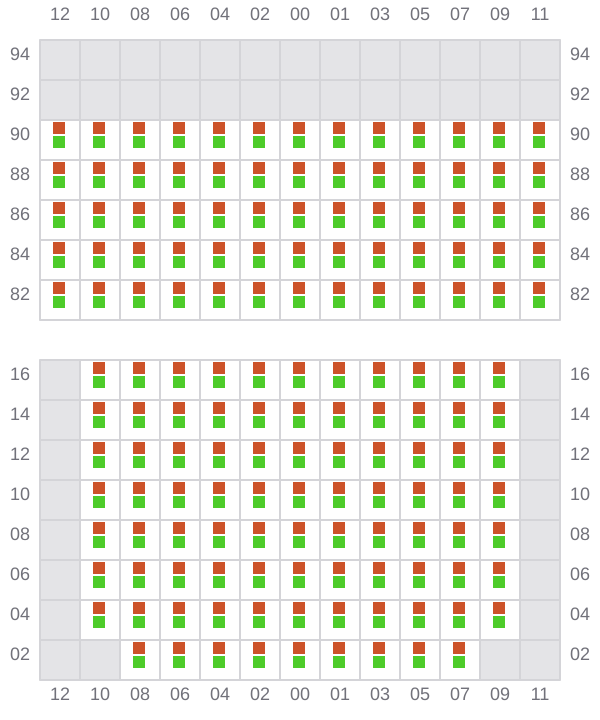

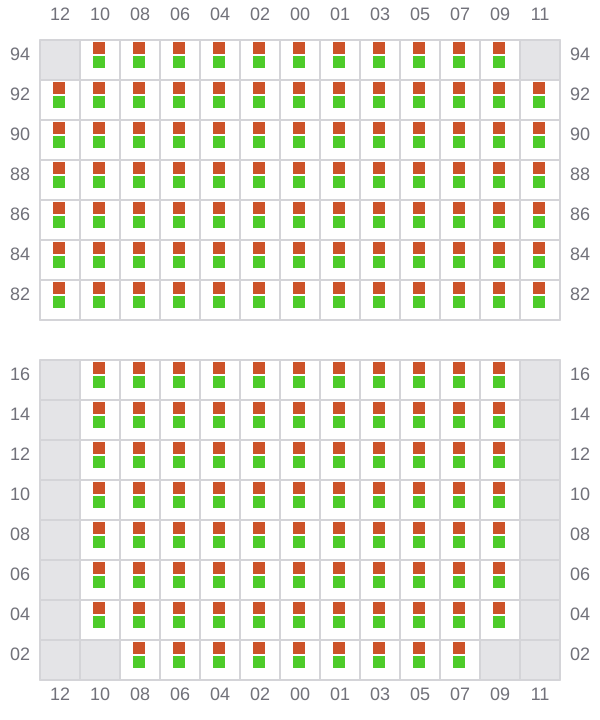

045 (046)
- →
047
- ←
049 (050)
- →

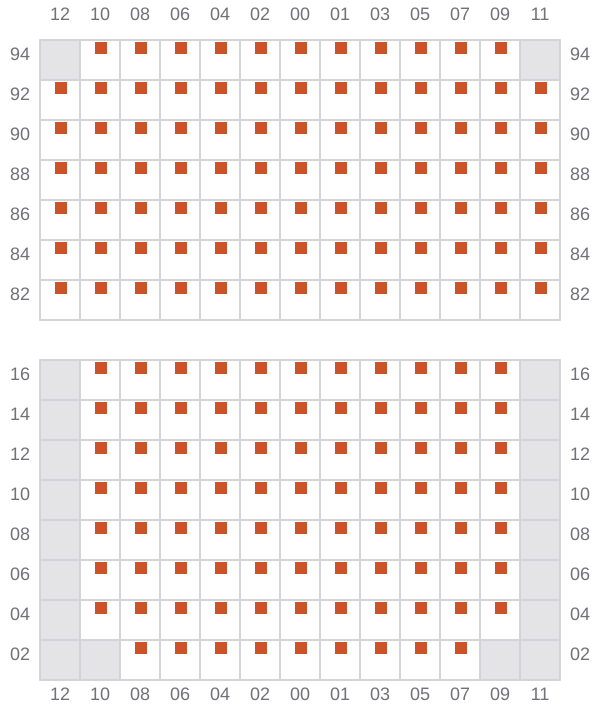

051
- ←
053 (054)
- →

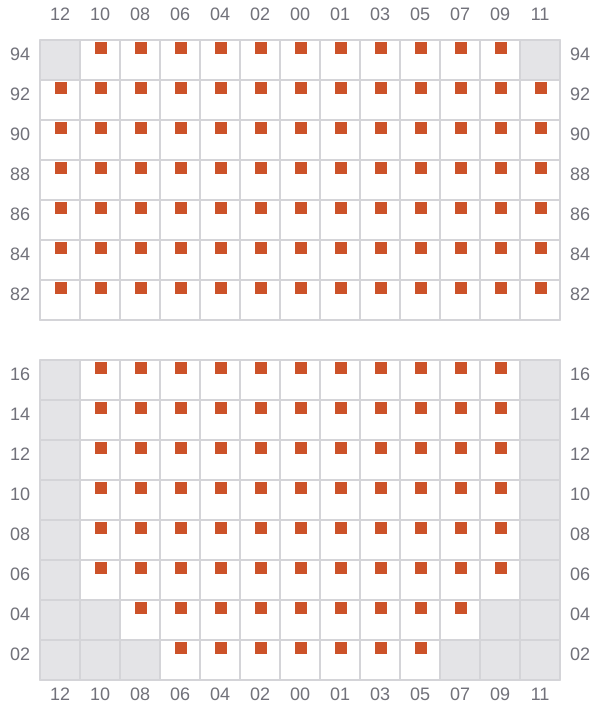

055
- ←

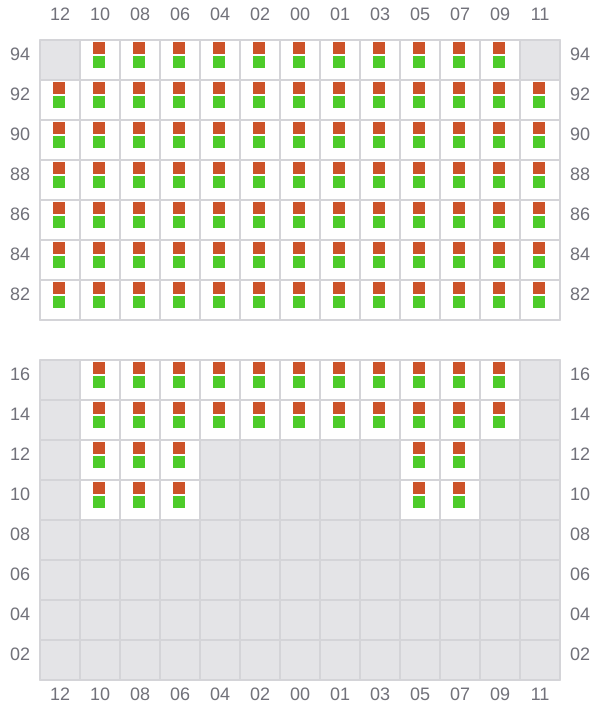

057 (058)
- →

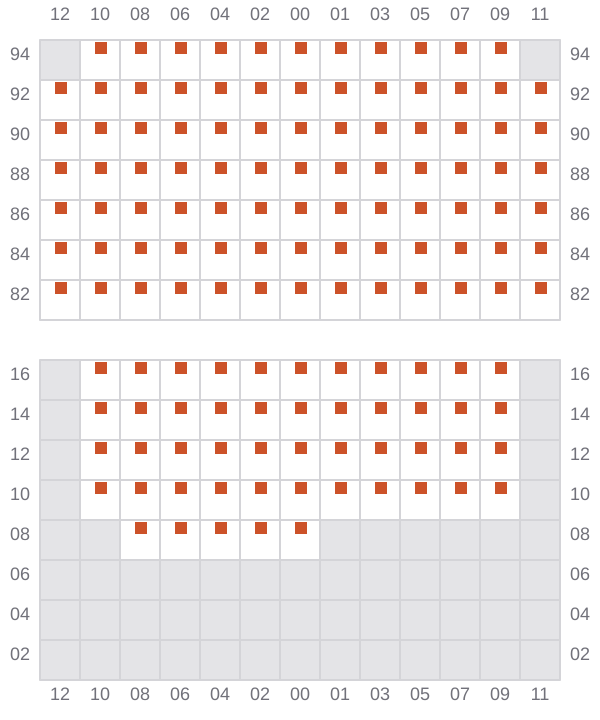

059
- ←
061 (062)
- →
063
- ←

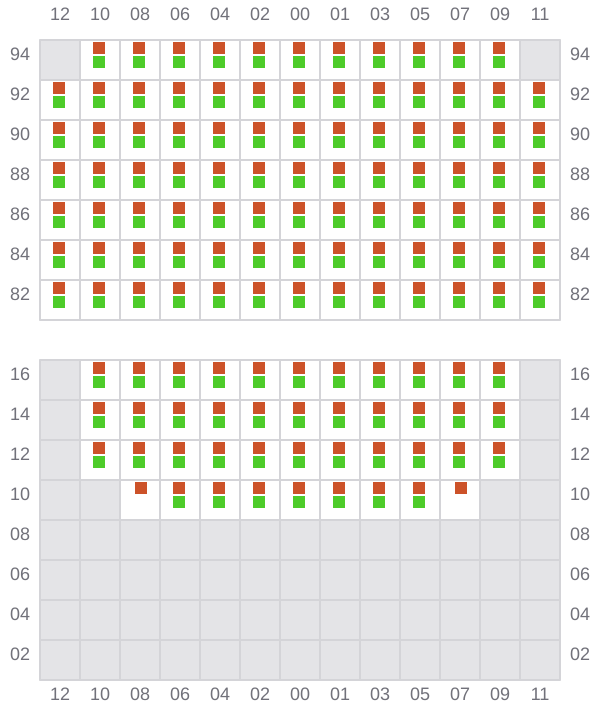

065 (066)
- →
067
- ←
069 (070)
- → / ?
